CPU

Intel Bay Trail CPU Celeron Quad core J1900 2.0GHz

chipset

CPU Integrated

System Memory

1x DDR3 SO-DIMM 4G,  up to 8GB  （default 4GB)

Storage

128G SSD or 320G HDD /500G HDD  (default 64GB SSD)

LAN

RealTek 8111E Gigabit Ethernet

Audio

RealTek  ALC661 HD  audio decode

LCD screen

LCD size

15 inch

Touch screen

Capacitive touch ,USB interface

Resolution

XGA 1024*768

Brightness

300cd /㎡

Response

10ms

Tilting Angle

0-90 degrees

I/O ports

Serial ports

1*DB9 (COM1，COM2) DC5V/12V jumper optional on PIN1

USB

1*USB 3.0    5 *USB 2.0

Ethernet

2*RJ45 10/100Mbps

VGA

1*DB15 2nd display VGA connector

Audio

1*line out   1*Mic in

DC port

1*12V/5A  DC input for pos power source

Relative Humidity

20﹪~80﹪ Non-condensing

Operating Temperature

0 ℃ to 40℃

input

100V-240V,50-60HZ 1.5A

output

DC 12V/5A

Color

black

Packing dimension

450*290*430mm

Package: carton box with Foam packaging

NW:5.5KG    GW:7KG

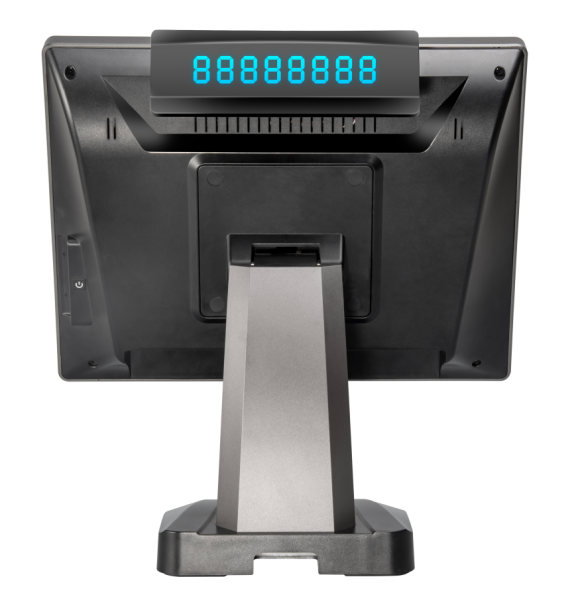

Customer display(VFD or LCD), MSR ,WIFI
