Motherboard |
|
CPU | Intel CoreTM i3 / i5 / i7 CPU as option |
chipset | CPU Integrated |
System Memory | 1x DDR3 SO-DIMM 4GB, up to 8GB （default 4GB) |
Storage | 128GB SSD or 320G HDD /500G HDD (default 64GB SSD) |
LAN | RealTek 8111E Gigabit Ethernet |
Audio | RealTek ALC661 HD audio decode |
LCD screen |
|
LCD size | 15.6 inch |
Touch screen | Capacitive touch ,USB interface |
Resolution | 1366*768 , 1920*1080(FHD ) as option |
Brightness | 300cd /㎡ |
Response | 10ms |
Tilting Angle | 0-90 degrees |

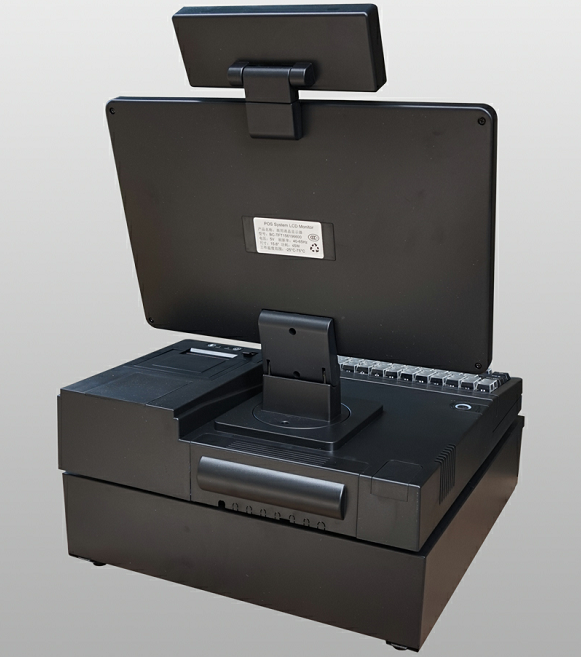

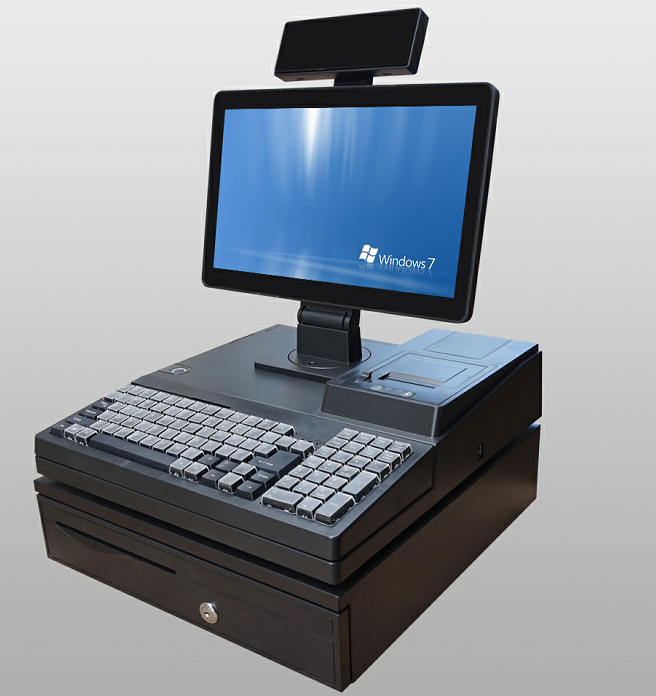

Build In parts | 58mm printer build in, 101 keys keyboard , cash drawer, speaker build in, 8 digital LED display |
| Options |
|
| 1D 2D QR code barcode scanner build in as option |
| WIFI, Bluetooth, NFC functions as option |
I/O ports |
|
Serial ports | 1*DB9 (COM1，COM2) DC5V/12V jumper optional on PIN1 |
USB | 1*USB 3.0 5 *USB 2.0 |
Ethernet | 2*RJ45 10/100Mbps |
VGA | 1*DB15 2nd display VGA connector |
Audio | 1*line out 1*Mic in |
DC port | 1*12V/5A DC input for pos power source |
Relative Humidity | 20﹪~80﹪ Non-condensing |
Operating Temperature | 0 ℃ to 40℃ |
input | 100V-240V,50-60HZ 1.5A |
output | DC 12V/7A |
Color | black |
Packing dimension | 450*290*430mm |
Package: carton box with Foam packaging | NW:5.5KG GW:7KG |

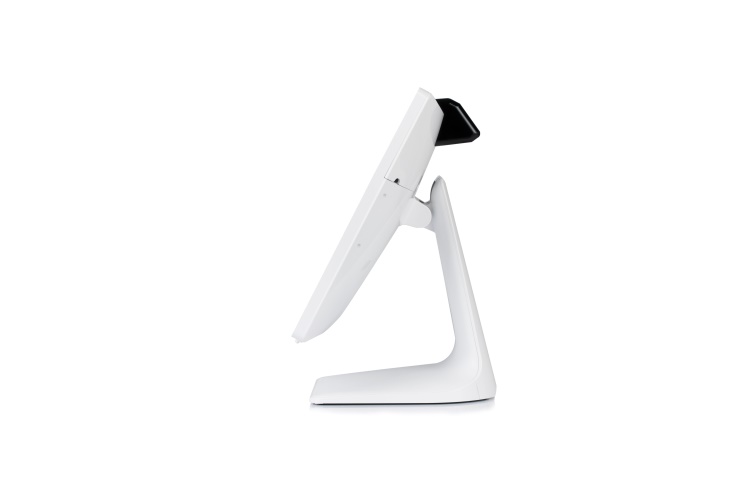

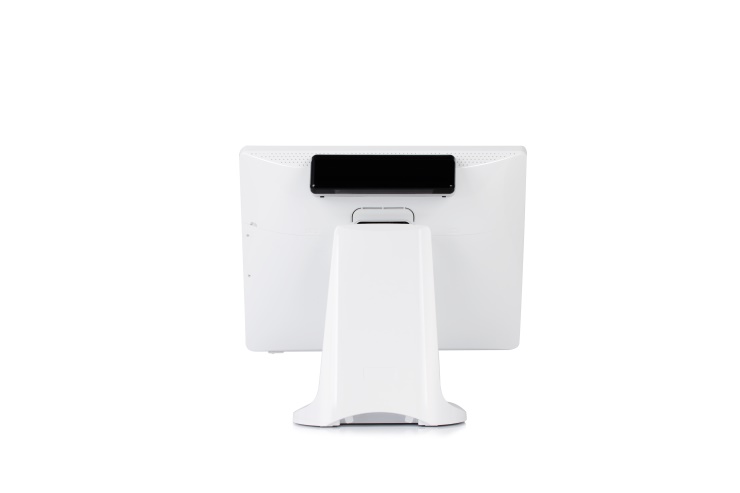

Customer display(VFD or LCD), MSR ,WIFI |
