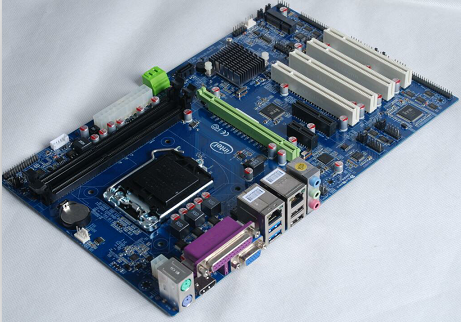

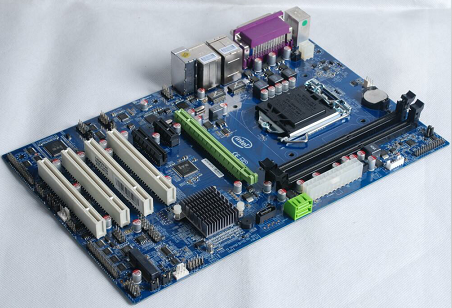

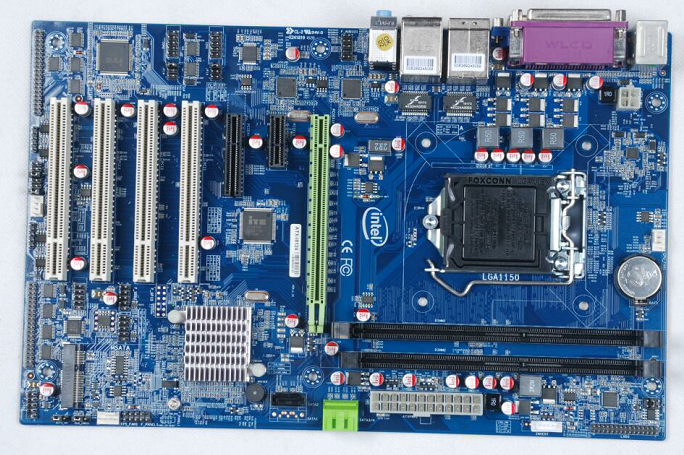

ITCF-I8124 Industrial PC Motherboard

The INTEL H87 single-chipset provides 6 serial ports, supports asynchronous dual display output, and uses the Intel 82583V dual-gigabit network card.

Intel H87 single-chipset, supporting hyper-threading technology

Supports Intel LGA1150 fourth-generation Haswell platform Core i3/i5/i7 processors

Supports 4*DDRIII 1333/1600MHz dual-channel memory, up to 32G memory

Onboard 1*VGA display interface, 1*HDMI, 1*COM serial port

Provides 1*PCI-E x16 interface (compatible with x8, x4 and x1), 1*PCI-E x1 slot, 10*SATA II 3.0, 6*USB 2.0 interfaces, 24*USB 3.0 interfaces.

Integrated 8-channel audio chip, onboard Intel dual-gigabit network card chip

Processor: Supports Intel 4th generation Haswell platform Core i3/i5/i7 LGA1150 processors

Chipset: Intel H87 single-chip

Memory: 4x 1.5V DDR3 DIMM, maximum capacity supported up to 32GB

Display Core: Integrated into the processor

BIOS: AMI BIOS, 1*8Mbit flash, supports automatic power-on upon power-up and automatic restart upon system crash

Solid State Drive: 9*SATA3.0, one Mini PCI-E (SSD), and WIFI interface

Expansion Interfaces: Provides 1*PCI-Ex16 slot (compatible with x8, x4 and x1), 1*PCI-Ex1, 6* USB2.0 interfaces and 24*USB3.0

Power Supply Method: 24-pin ATX power interface

Motherboard Size: ATX 305MM * 210MM

Operating Temperature: -15~70 °C

Operating Humidity: 10%~80% relative humidity

IO interface: 1*HDMI, 1*VGA, 2*RJ45, 1*COM, 24*USB, 6*JACK

USB: 6*USB2.0 ports (requires expansion), 24*USB3.0

Network card: 2*Intel 82583V Gigabit Adaptive Network Card Chips with 1000M speed

Sound card: Built-in Realtek ALC655 8-channel audio decoding chip
