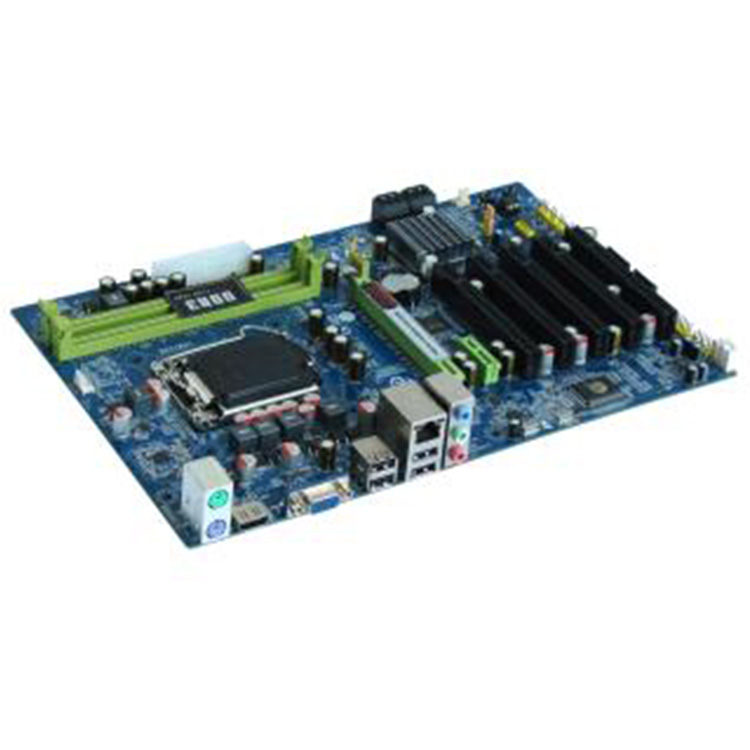

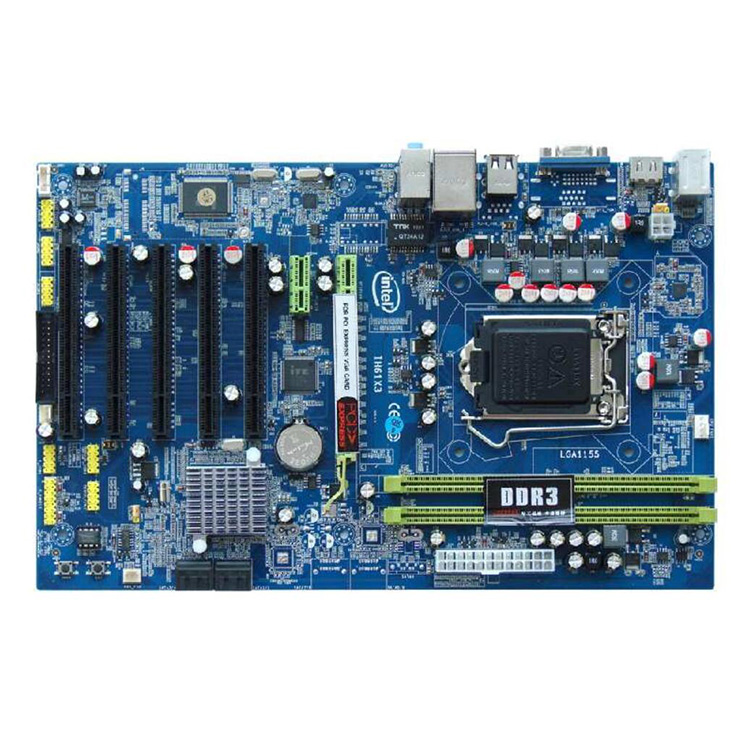

ITCF-I6314A

Industrial PC ATX Motherboard with PCI slots, serial port, Parallel port, AI data station

Intel H61 Chip

Supports LGA 1155 socket, Intel SNB/IVB series processors

Supports 2*DDR3 1066/1333 memory, with a maximum capacity of 16GB

Display core depends on the CPU

1*PCI Express 16X , 1*PCI Express 1X, 5*PCI

4 x SATAII 300Mb/s, 8 x USB2.0 (4 need expansion), 2 x COM ports, 1 x print head connector.

Integrated 6-channel audio chip, onboard 1 x 1000M network card, supports CD_IN.

Onboard VGA + HDMI display interfaces

Chip   (Chip)   Intel H61 Chip

Memory   (Memory)   2×DDR3 1066/1333 MHz, maximum capacity supported is 16GB

Graphics   (Graphics Core)   Dependent on CPU

Audio   (Audio Card)   Built-in Realtek ALC662 HD6 audio channel decoding chip

LAN   (Network Card)   Built-in 1*Realtek 8111E 10/100M/1000M adaptive network card chip, supports diskless operation "Storage Interface

(Storage standard) " 4 x SATA 3 Gb/s "Expansion Slots

(Expansion Slot) "1*PCI Express X16 slot

1*PCI Express X1 slot

5*PCI slots"

USB Support 8 USB 2.0 ports (4 of which require expansion) "Internal I/O

Connectors

(Internal Input/Output Interfaces) "1. 1 x 24-pin ATX main power interface

2. 1 x 4-pin ATX 12V power interface

3. 4 x SATAII SATA disk interfaces

4. 1 x CPU fan header for CPU fan interface

5. 1 x system fan header for system fan interface

6. 1 x front panel header for front panel pins

7. 1 x front sound card header for front audio jumper pins

8. 2 x JCOM1 COM interface expansion pins

9. 2 x USB 2.0 headers for USB expansion pins

10. 1 x Clear CMOS Header for clearing CMOS pins

11. 1 x DEBUG Header for DEBUG indicator pins

12. 1 x CD_IN interface

13. 1 x print head pins" "Back Panel

Connectors

(Back panel interface) "1. 1 x PS/2 mouse port, 1 x PS/2 keyboard port

2. 1 x HDMI, 1 x VGA port

3. 4 x USB 2.0 ports

4. 1 x RJ-45 network card port

5. 3 x audio interface (6-channel audio interface)" "I/O Controller

(Input/Output Controller) "IT8721F I/O Control Chip

BIOS Utilizes BIOS authorized by AMI, 1*32Mbit Flash "Form Factor

Motherboard structure and dimensions: "ATX 300*190.00mm"
