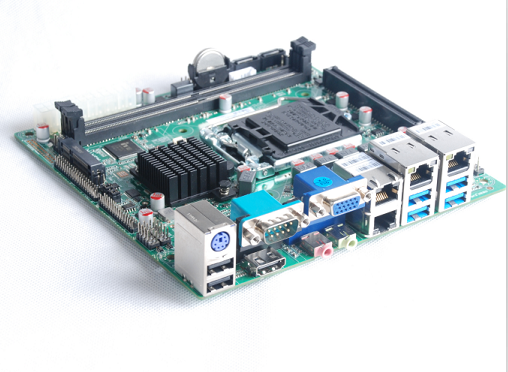

Industrial Motherboard : ITCF-I1146
Product Features
Supports Intel 6th/7th/8th/9th Gen processors (Intel LGA 1151 socket)
Intel H110 Chipset
Provides 6 × COM ports (COM6 supports optional RS422/485 mode)
Provides 1 × VGA interface, 1 set of dual 24-bit LVDS or EDP pin headers
Provides 4 × network interfaces (Intel I211AT)
10 × USB interfaces (4 of which require expansion)Provides 3 × SATA 3.0 interfaces; 1 × MINIPCIE for SATA; 1 × MINIPCIE for WIFI
1 × SIM card slot
24+4-pin ATX power supply
CPU: Supports Intel 6th/7th/8th/9th Gen platform Core i9/i7/i5/i3/Pentium/Celeron processors
Main frequency: Determined by the CPU
Socket: LGA 1151
Chipset: Intel H110
TDP: Determined by the CPU
Memory
Capacity: DIMM DDR4 2400/2666MHz Memory, Max. 64GB (depends on CPU)
Sockets: 2×288-pin DIMM
Expansion Slots
PCI: 0
PCIe x1 (GEN2): 1 × single-direction 500MB/s (bidirectional 1GB/s); actually uses a MINI-PCIE slot
PCIe x4 (GEN2): 0
PCIe x8: 0
PCIe x16 (GEN2): 1 × single-direction 8GB/s (bidirectional 16GB/s)
Display
Chipset: CPU-integrated HD Graphics
VGA: 1×VGA, max. resolution 1920×1200
EDP/LVDS: 1×dual-channel 24-bit LVDS or EDP pin header, max. resolution 1920×1200
HDMI: 1×HDMI 1.4 interface, max. resolution 4096×2304
DP: 0
Network
Chipset: 4×Intel I211AT adaptive gigabit Ethernet controllers
Interfaces: 4×RJ45 interfaces
Audio
Chipset: Realtek ALC662 HD audio codec
Interfaces: 2×JACK (1×Line-out, 1×Mic)
Front/Rear I/O
Serial ports: 1×COM port (RS232) + 5×COM pin headers (COM6 supports optional RS422/485)
Parallel port: 1×DB25 pin header (optional)
USB: 4×USB3.0 interfaces + 2×USB2.0 interfaces + 2×USB2.0 pin headers (expandable to 4×USB2.0)
SATA: 3×SATA3.0, 1×MSATA interface, SIM card slot
GPIO: 0
PS/2: 1×PS/2 keyboard/mouse interface
Pin headers: 1×F-PANEL pin header; 1×AUDIO pin header; 1×CLR_CMOS jumper cap; 1×AUTO_SEL jumper cap; 1×LVDS-PWR; 1×INVERT; 1×CPU-FAN pin header; 1×SYS-FAN pin header; 1×COM6_RS485
Watchdog Output: N/A Interval: N/A
Input: 24+4-pin ATX power supply
Operating System Supported versions: Windows 7/8/10
BIOS Version: AMI 64Mbit SPI, supports RPL/PXE diskless boot
Environment Operating temperature: -15℃ ~ 55℃
Storage temperature: -15℃ ~ 60℃
Relative humidity: Operating mode: 95%rh, Storage mode: 98%rh
Physical Parameters
Dimensions: 170 × 170 (mm)
